Server Room & Workstations (RapidX340)

Server Room & Workstations (RapidX340)

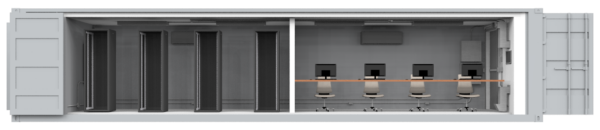

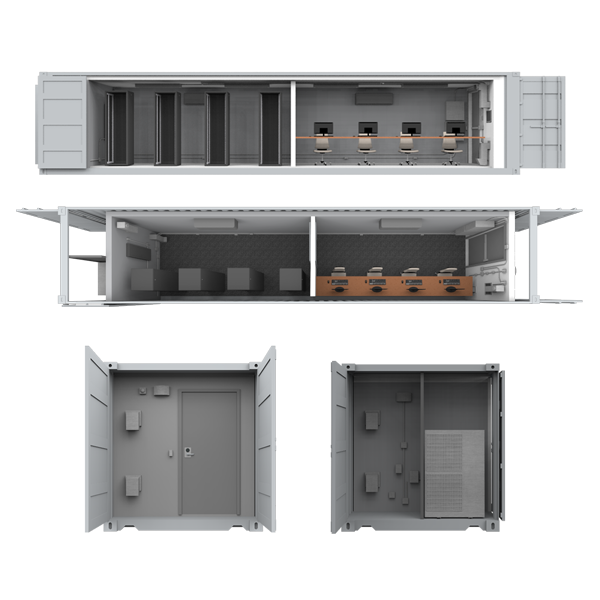

Inside of a 40 foot container SCIF split into workstations and a server room

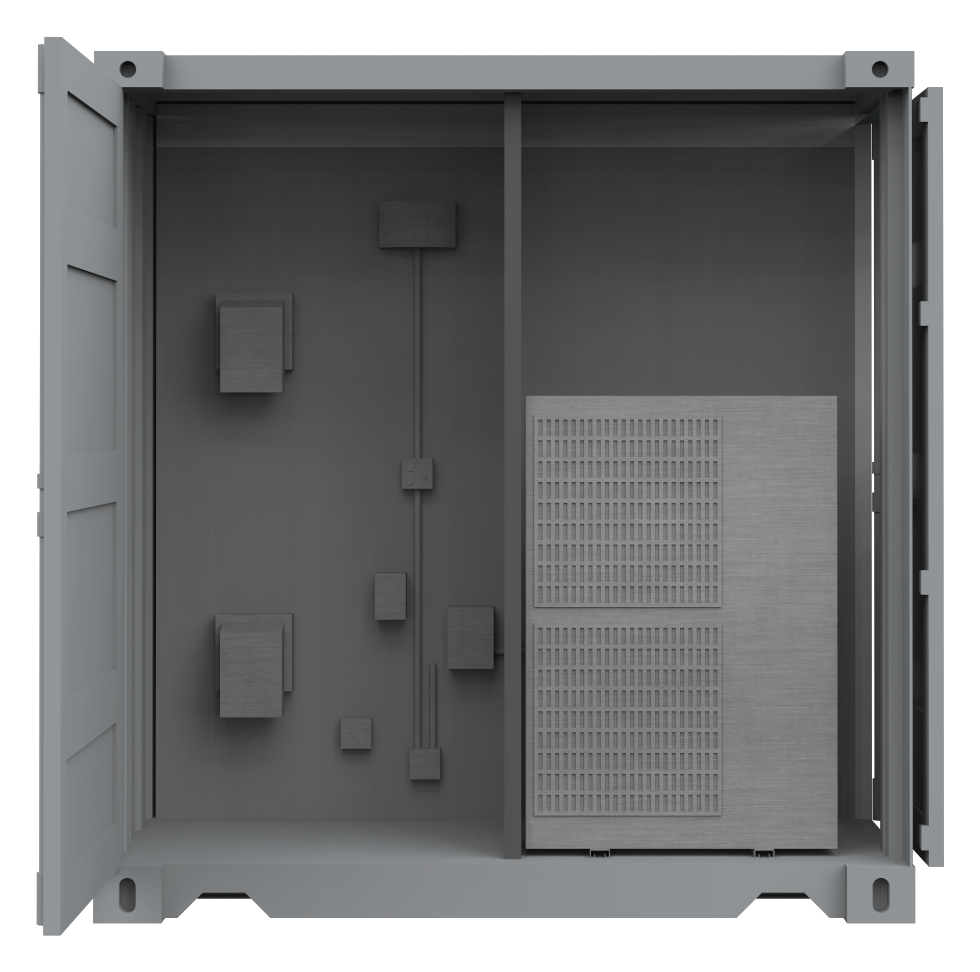

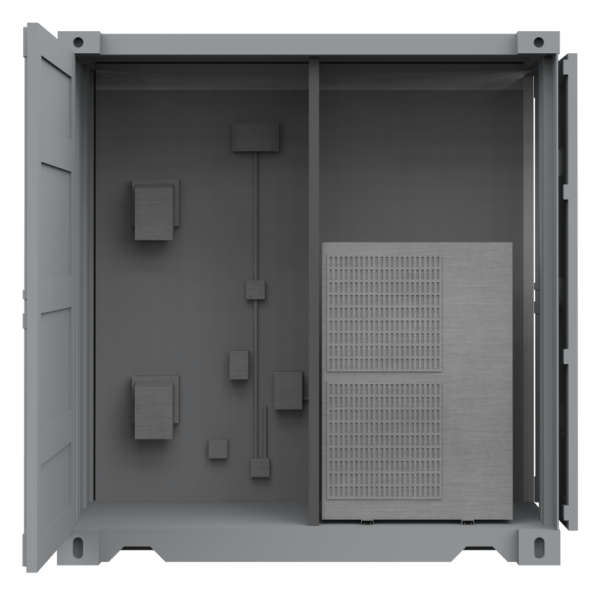

HVAC system of a container SCIF

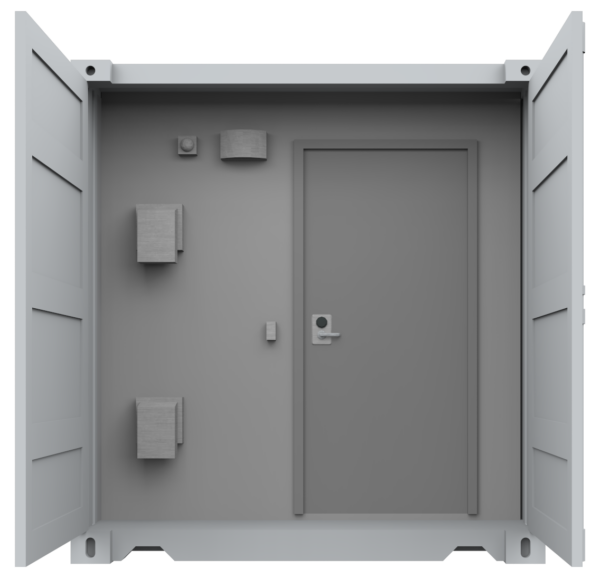

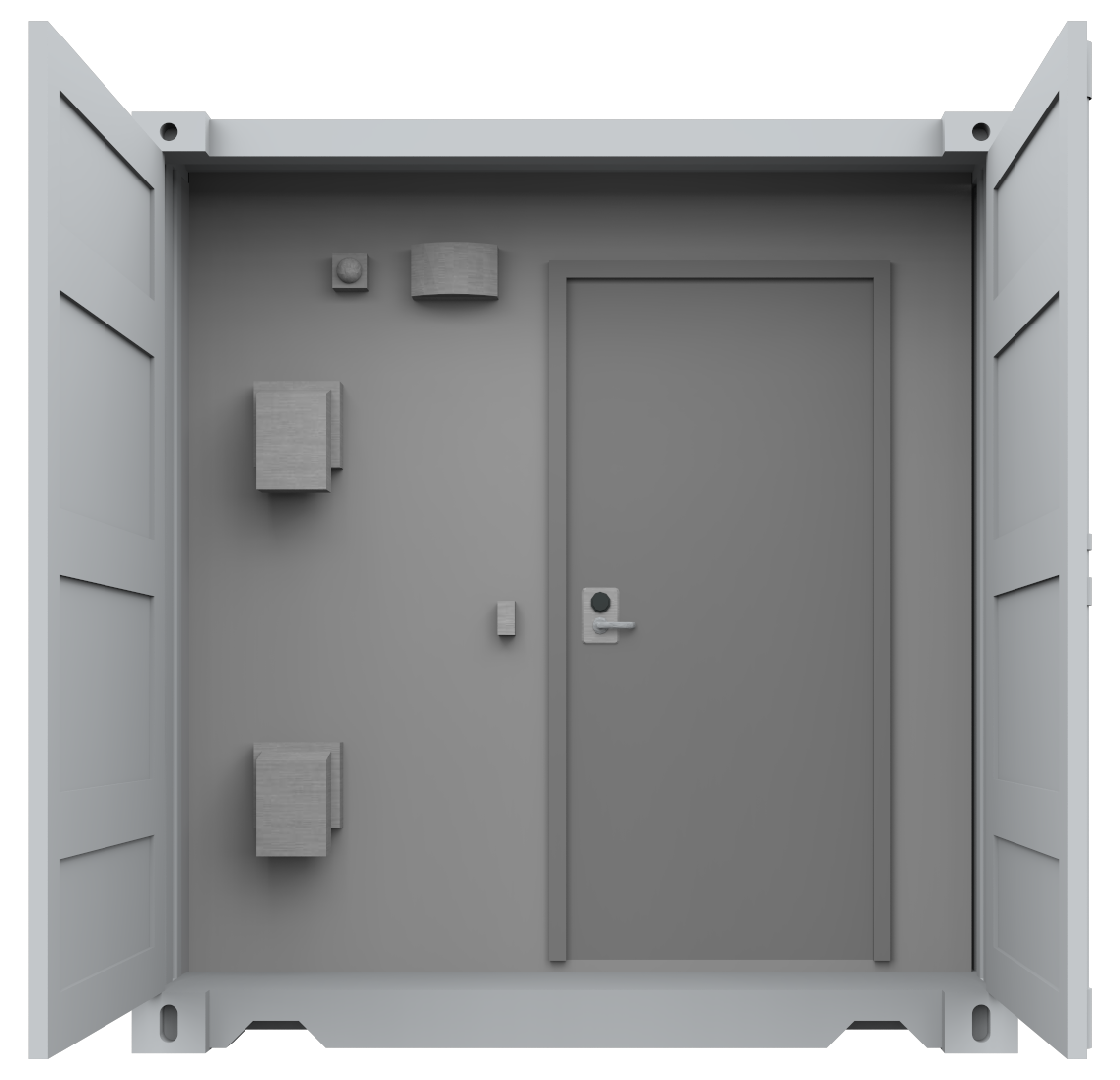

Door of a container SCIF

Server Room & Workstations (RapidX340)

Estimated cost: Starts at $250,000*
*Sales tax, furnishings and movement of unit on site not included in price.

Dimensions
  • Exterior: 8’ (w) x 40’ (l) x 8’6” (h)
  • Interior: 6’10” (w) x 33’11” (l) x 7’3” (h)
Approximate weight 15000 lbs
Features
  • Number of Workstations: 1-4, 24” fixed plastic laminate countertop
  • RF Shielding: Standard or Enhanced**
  • IDS/ ACS: Power and Pathway (No system included)
  • CCTV: 19” monitor and camera
  • Cooling: 5-ton
  • Doors: 3'0" x 6'8" STC 50 rated entry door, 3'0" x 6'8" solid core wood secondary door
  • Electrical: 120/208V 100 Amp, 3-phase panel, 10 receptacles, 4 30A twist-lock receptacles
  • Flooring: 2' x 2' carpet tile in workspace, 12” x 12” VCT in server room
  • Data: One 1” surface-mounted unsecure data conduit (low), one 1” surface-mounted secure data conduit (high), space for four data racks (racks not provided)
  • Delivery (continental U.S.): Yes
    **Enhanced RF shielding requires additional fee and longer fabrication time.
    Download Product Specs  Request a Quote

    This 40-foot ISO shipping container is built to ICD 705 standards for SCIF or SAPF accreditation. It’s divided in half with an interior wall and door to serve as both a server room to hold up to four (4) server racks (24”x36”) and as a workspace to accommodate 1-4 workstations. To accommodate server racks, up to four (4) 30-amp dedicated twist-lock receptacles for network equipment are included in the server room. The workspace includes a work surface plus two (2) shielded Cat 6 network connections per workstation. The container meets STC 50 acoustic protection and the minimum TEMPEST recommendations, as dictated by the ICD 705 Tech Spec V1.5.1. The RapidX240 includes a Kaba Mas X10 series locking device, prep for security systems, CCTV, and five (5) tons of cooling with a split ductless HVAC system. Includes 10 electrical receptacles, wall-mounted server rack and patch panel for network. Each Rapid SCIF container includes unlimited accreditation consulting support, including draft sections of Construction Security Plan (CSP), and Pre- Construction Checklist, construction information for your Fixed Facility Checklist (FFC), and photo documentation.
